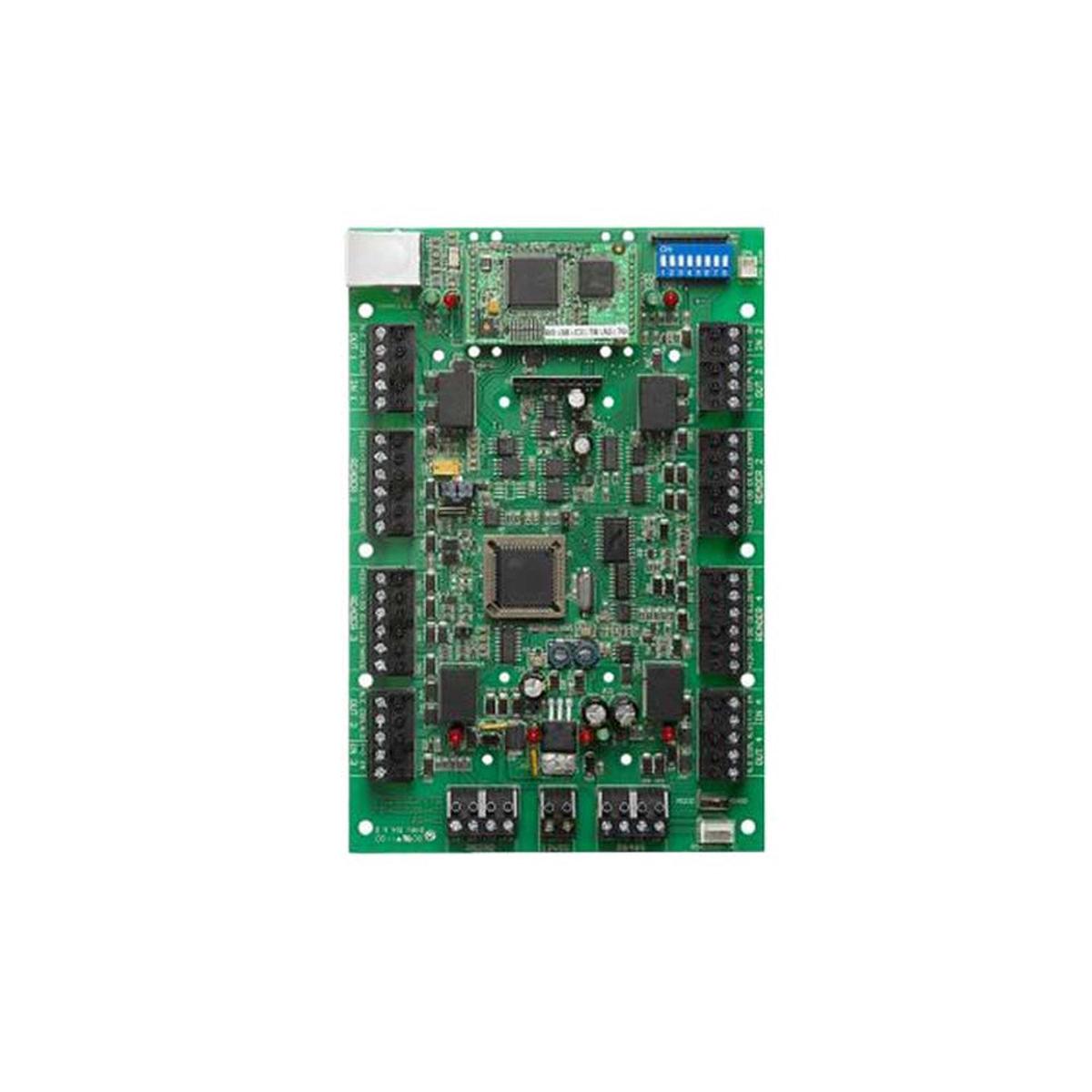

Rosslare – AC-425IP – Expandable Networked Access Control for PCBA Only – 4 Readers – TCP/IP

<h3>Rosslare - AC-425IP - Expandable Networked Access Control for PCBA Only - 4 Readers - TCP/IP</h3> <h5>Specifications:</h5> <table> <tr> <td>Type</td> <td>Printed Circuit Board Assembly</td> </tr> <tr> <td>Readers</td> <td>4 reader ports (6-wire)<br/>Output voltage: 12 VDC<br/>Max. current: 245 mA<br/>LED control output and Tamper Input</td> </tr> <tr> <td>Inputs</td> <td>4 supervised, hi-impedance inputs; Max. voltage: 5 VDC</td> </tr> <tr> <td>Outputs</td> <td>4 fully programmable 5 A, N.O. and N.C. relay outputs Rated 5 A @ 30 VDC</td> </tr> <tr> <td>Interface</td> <td>TCP / IP</td> </tr> <tr> <td>Serial Ports</td> <td>10/100 Ethernet Port</td> </tr> <tr> <td>Networking</td> <td>Rosslare's AxTraxNG Server</td> </tr> <tr> <td>Users</td> <td>30,000 active credentials (Card & PIN)</td> </tr> <tr> <td>Event Log</td> <td>20,000 Events</td> </tr> <tr> <td>Housing</td> <td>Printed Circuit Board Assembly Only</td> </tr> <tr> <td>Standard Approvals</td> <td>CE - Safety, ENC, RFI, LVD RED 2104/53/EU; FCC - CFR47 Part 15b</td> </tr> <tr> <td>Dimensions</td> <td>14.3 x 10.4 x 3.4 in.</td> </tr> <tr> <td>Weight</td> <td>3.4 kg (7.5 lb)</td> </tr> </table> <h5>Downloads:</h5> <ul> <li>Data Sheet</li> </ul>
