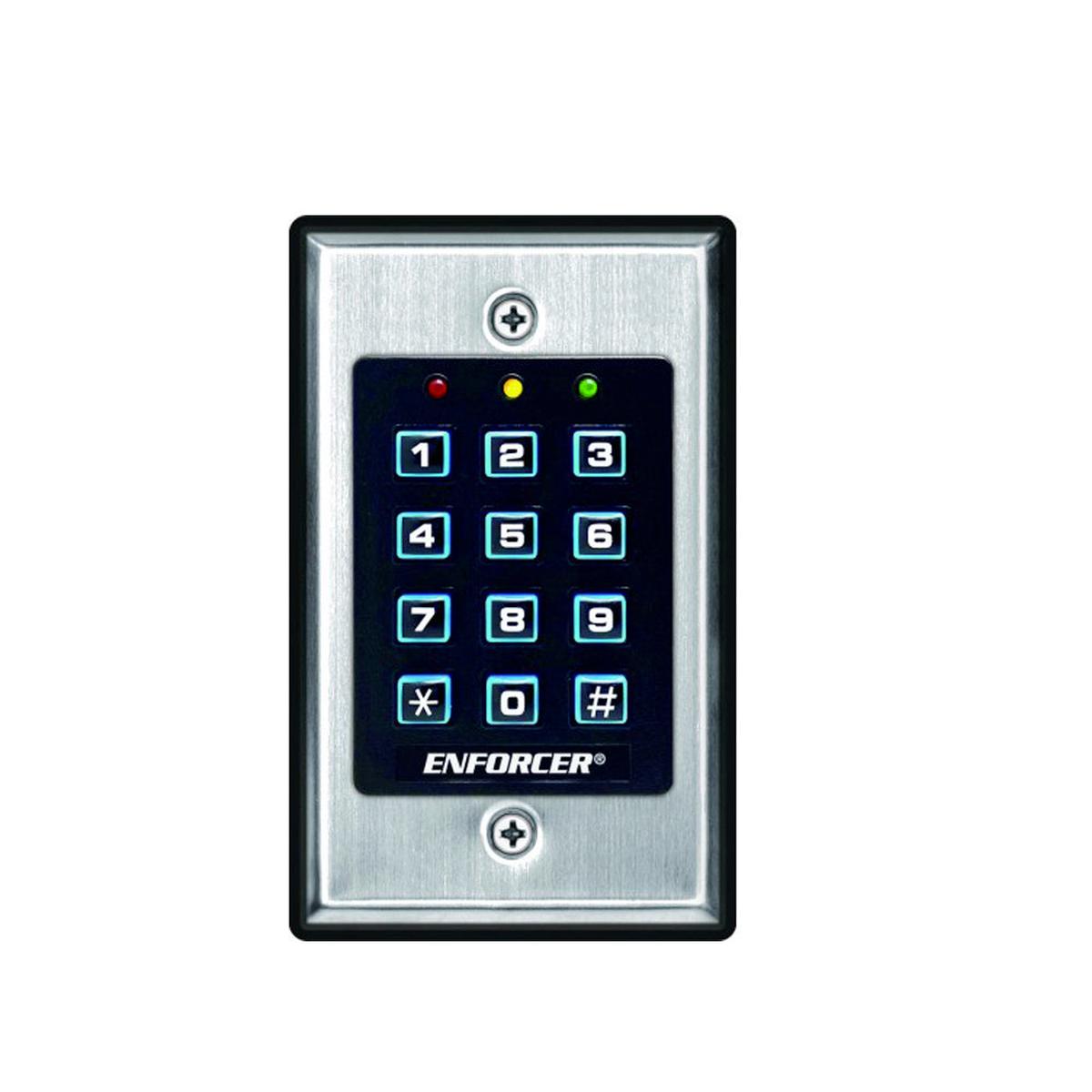

SECO-LARM SK-1011-SDQ Access Control Keypad, 1,000 Users, 1 relay output (Indoor)

<h3>SECO-LARM SK-1011-SDQ Access Control Keypad, 1,000 Users, 1 relay output (Indoor)</h3><h5>Feature:</h5><ul> <li>Up to 1,000 possible user codes (4-8 digits)</li> <li>Output: Form C relay, 1A@30VDC max.</li> <li>Output can be programmed to activate for up to 99,999 seconds (nearly 28 hours)</li> <li>Always-on backlit keypad</li> <li>Up to 50 (01~50) possible temporary visitor codes, which can be programmed for onetime or limited-time use (1~99 hours)</li> <li>Durable and attractive stainless-steel faceplate</li> <li>Programmable delayed egress input lets users exit the premises without keying in the code</li> <li>EEPROM Memory protects programmed information in case of power loss</li> <li>12~24 VDC/VAC Auto-adjusting operation</li> <li>Tamper output: N.C. Dry contact, 50mA@24VDC max.</li> <li>Mounts to a standard single-gang back box (surface-mount back box included)</li> <li>Programmable wrong-code lockout</li> <li>Real-time clock to auto-disable access at specific times</li> <li>All features are programmed directly from the keypad: No need for an external programmer</li></ul><h5>Specification:</h5><table> <tr> <td>Operating Voltage</td> <td>12~24 VDC/VAC</td> </tr> <tr> <td>Current Draw - Standby</td> <td>15mA@12VDC</td> </tr> <tr> <td>Current Draw - Keypress</td> <td>30mA@12VDC</td> </tr> <tr> <td>Current Draw- 1 Relay Active</td> <td>55mA@12VDC</td> </tr> <tr> <td>Current Draw - Total Max</td> <td>90mA@12VDC</td> </tr> <tr> <td>Relay Output- #1</td> <td>1A@30VDC, Form C</td> </tr> <tr> <td>Relay Output- Tamper</td> <td>50mA@24VDC</td> </tr> <tr> <td>Egress Inputs</td> <td>N.O. ground</td> </tr> <tr> <td>Operating Temperature</td> <td>-4~158 F (-20~70 C)</td> </tr> <tr> <td>Operating Humidity</td> <td>5~95% Non-condensing</td> </tr> <tr> <td>Dimensions</td> <td>4-5/8"x2-7/8"x1-1/2" (117x73x38 mm)</td> </tr> <tr> <td>LED Status- Red</td> <td>Inhibit /lockout mode</td> </tr> <tr> <td>LED Status- Amber</td> <td>Flashes to show the keypad status (see chart)</td> </tr> <tr> <td>LED Status- Green</td> <td>Any output activated</td> </tr> <tr> <td>Weight</td> <td>6-oz (170 g)</td> </tr> </table><h5>Downloads:</h5><ul><li>Data Sheet</li><li>User Manual</li></ul>
